IVS Sapphire Windows
Optical Performance: A plane wave shall be distorted no more than 1/4 wave in a single pass, verified by HeNe Interferogram**.
Parallelism: Less than one second of arc, verified in Internal Frizeau Fringe Interferogram**
Orientation: Each IVS Sapphire Window is individually x-ray oriented and corrected to within +/- 30 minutes of axis. Actual orientation of each finished window can be supplied to +/- 3 minutes or arc.
Axial/Planar Orientation: Available in Zero Degree (optical axis of the sapphire perpendicular to the window face), or 90 Degree (optical axis in the plane of the window).
** All interferograms are made at 632.8 nm with our Zygo Mark II with 6" aperture, microcomputer data reduction and fringe analysis.

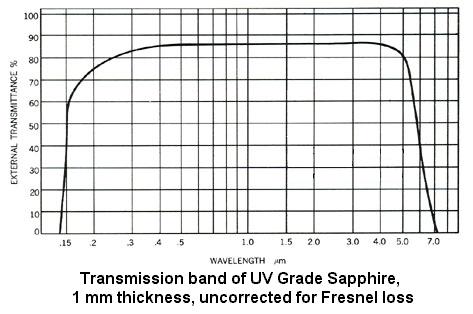

Material Characteristics
| Material | Surface Quality | Clear Aperture | Parallelism | Diameter Tolerance | Thickness Tolerance |
|---|---|---|---|---|---|
| Optical grade single-crystal sapphire | 10-5 Scratch and Dig | 85% of overall diameter | Less than 1 second of arc | +0.000"/-0.004" (+0.0 mm/0.1 mm) |
+/- 0.004" (+/- 0.1 mm) |
IVS Part Numbers
| Orientation | Thickness | 0.500" diameter | 0.750" diameter | 1.000" diameter | 1.500" diameter | 2.000" diameter |
|---|---|---|---|---|---|---|
| 90 degree |
1.0 mm 2.0 mm 3.0 mm 5.0 mm 10.0 mm |
IVS-0501-A IVS-0502-A IVS-0503-A IVS-0505-A IVS-0510-A |
IVS-0701-A IVS-0702-A IVS-0703-A IVS-0705-A IVS-0710-A |
IVS-1001-A IVS-1002-A IVS-1003-A IVS-1005-A IVS-1010-A |
IVS-1501-A IVS-1502-A IVS-1503-A IVS-1505-A IVS-1510-A |
IVS-2001-A IVS-2002-A IVS-2003-A IVS-2005-A IVS-2010-A |
| 0 degree |
1.0 mm 2.0 mm 3.0 mm 5.0 mm 10.0 mm |
IVS-0501-C IVS-0502-C IVS-0503-C IVS-0505-C IVS-0510-C |
IVS-0701-C IVS-0702-C IVS-0703-C IVS-0705-C IVS-0710-C |
IVS-1001-C IVS-1002-C IVS-1003-C IVS-1005-C IVS-1010-C |
IVS-1501-C IVS-1502-C IVS-1503-C IVS-1505-C IVS-1510-C |
IVS-2001-C IVS-2002-C IVS-2003-C IVS-2005-C IVS-2010-C |
Boston Piezo-Optics Inc. reserves the right to change specifications without notice.
